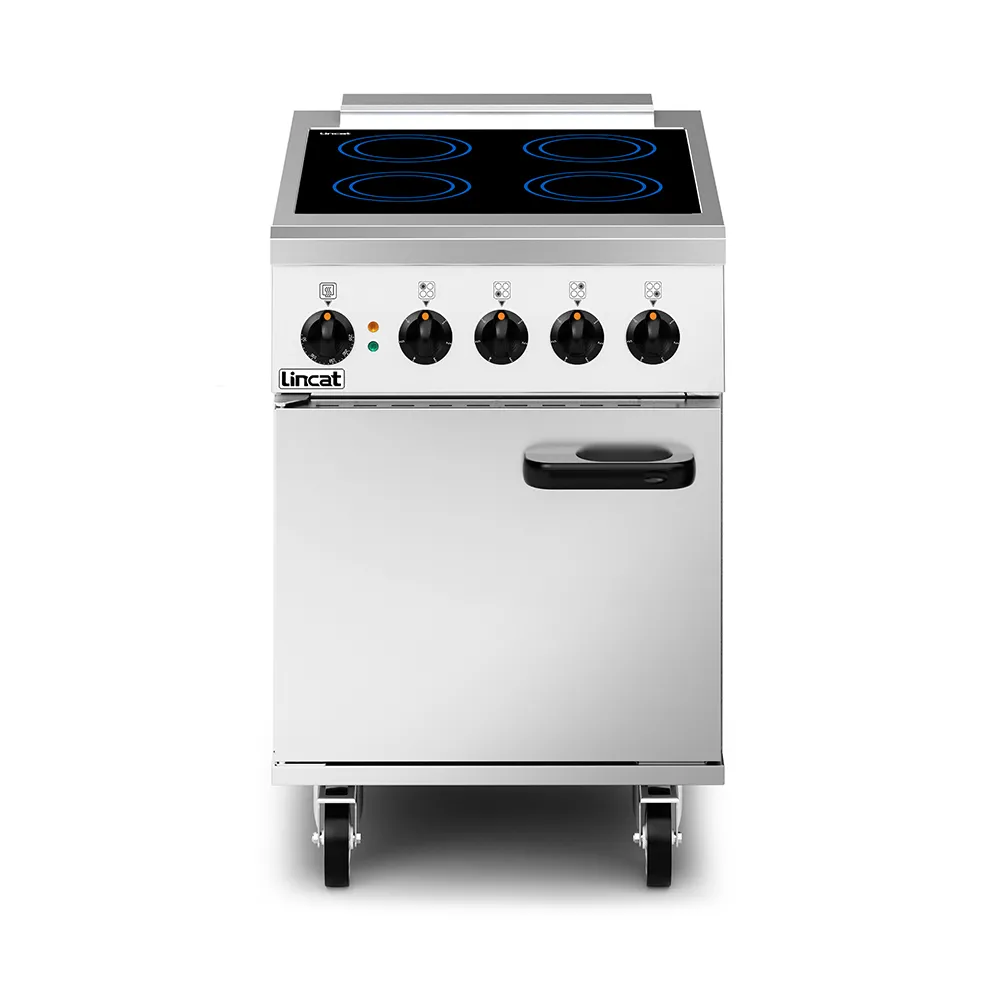

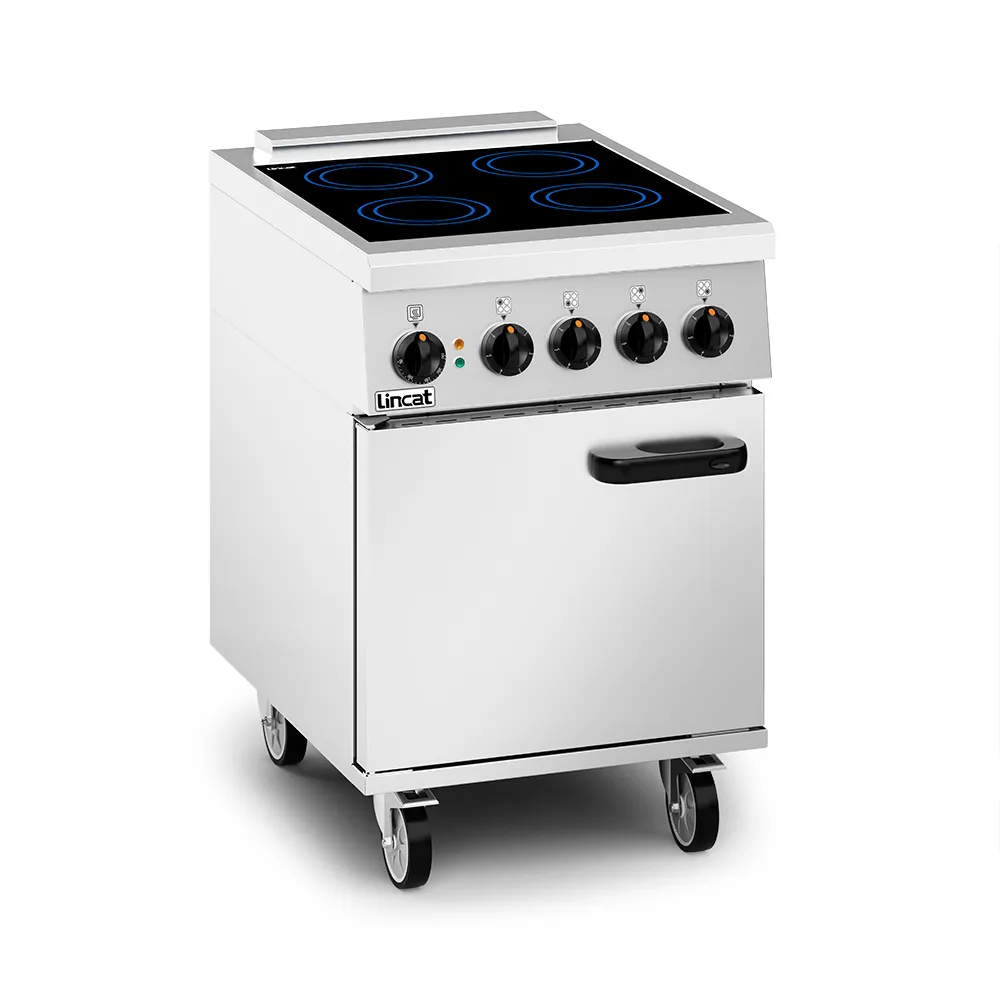

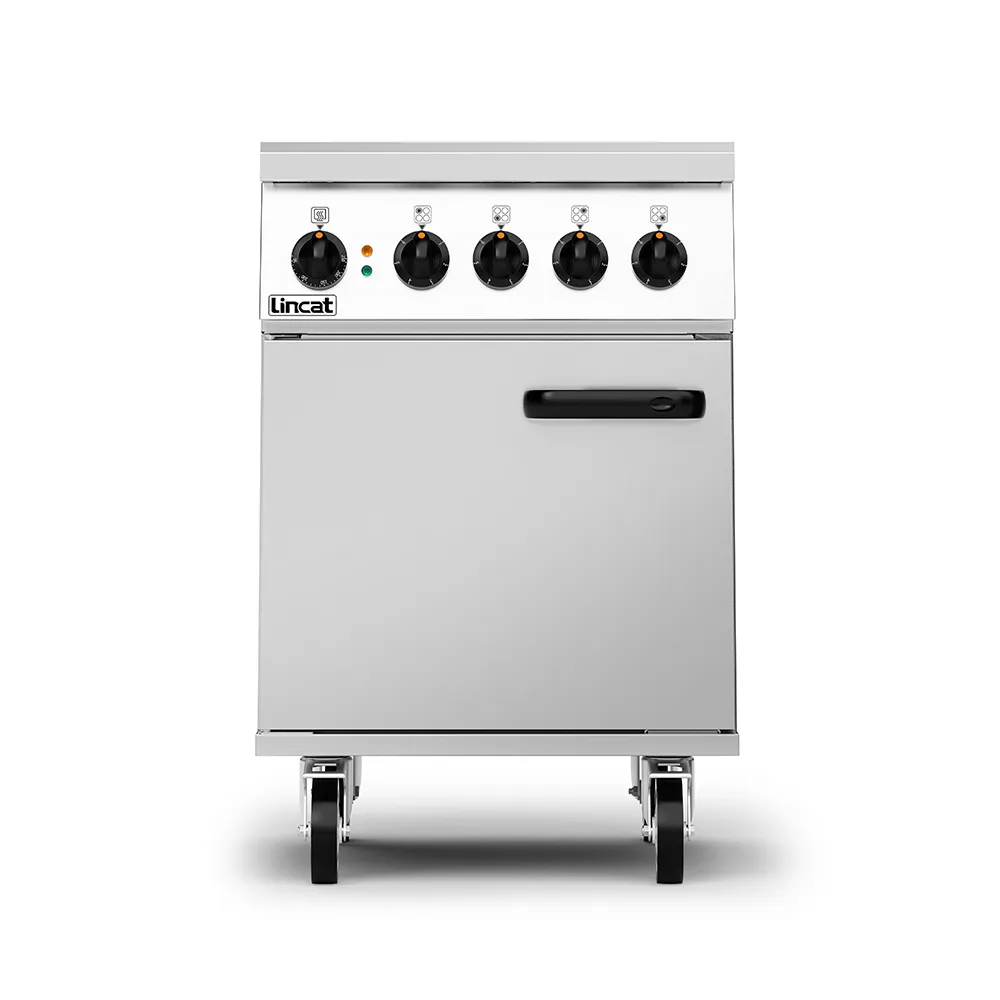

Lincat Phoenix PHER02 Electric Free-standing Induction Oven Range

Summary

Brand : Lincat

Range : Phoenix

Power Type : Electric

Unit Type : Free-standing

Available in UK Only : No

UK Warranty : 2 Years Parts and Labour Warranty

Export Warranty : Contact your local dealer

GTIN : 5056105118466

Power and Performance

Total Power kW : 11.4

Temperature Range °C : 50-250

IP Rating : IP24

Cooking Area (Width x Depth) mm : 190 diameter x 6

Temperature Control : Mechanical

Rating per Hob kW : 1.85

Oven Rating kW : 4

Key Specifications

Number of Shelves included : 3

Number of Shelf Positions : 5

Number of Hobs : 4

Shape of Hob : Round

Capacity

Gastronorm Capacity : 3 x GN1/1

Weights and Dimensions

Unit Height (External) mm : 900

Unit Width (External) mm : 600

Unit Depth (External) mm : 805

Height (Internal) mm : 405

Width (Internal) mm : 495

Depth (Internal) mm : 530

Shelf Dimensions Width mm : 480

Shelf Dimensions Depth mm : 530

Hob Dimensions mm : 190

Net Weight Kg : 109

Supply Connections

Requires Installation : Yes

Requires Electrical Supply : Yes

UK 3 Pin Plug : No

Requires Hardwiring : Yes

Electrical Supply Rating Watts : 11,400

Single Phase Amps : 49.6

Single Phase Voltage : 230

Three Phase Amps : L1=17.4; L2=16.1; L3=16.1

Three Phase Voltage : 400
