Bartscher Convection oven AT400 humidity
Fan speed : 1 level
Number of cooking programs : 1
Number of cooking phases : 1
Number of motors : 2
Protection class : IPX3
Series : AT
Material cooking chamber : Stainless steel
Functions : Circulating air
Steaming

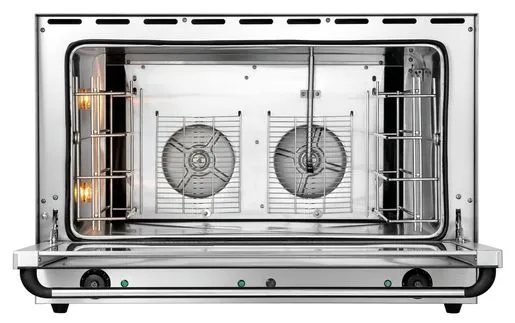

Reversing motor direction (fan wheels)
Temperature range from : 50 °C
Temperature range to : 300 °C
Temperature control : Stepless
Heat-up time : approx. 8 minutes (200 °C)
Timer : yes
Time setting from : 0 minute(s)
Time setting to : 180 minute(s)
Thermostat : yes
Width inside : 700 mm
Depth inside : 360 mm
Height inside : 460 mm
Type of drawers : Crosswise
Format drawers : 600 x 400 mm
Number of drawers : 4
Distance between trays : 80 mm
Water connection : 3/4"
Interior lighting : yes
LED display : -
Control unit : Toggle
Equipment connection : 3 NAC
ON/OFF switch : no
Control lamp : Steaming
ON/OFF
Heat up

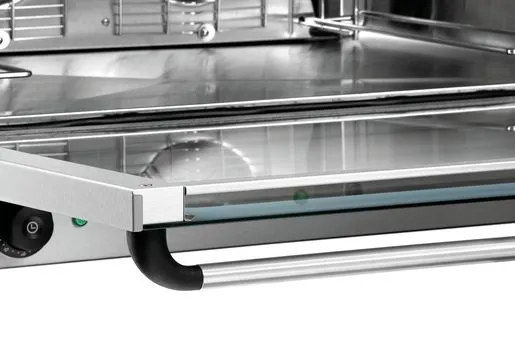

Properties : Double-winged door pane
Rounded baking chamber

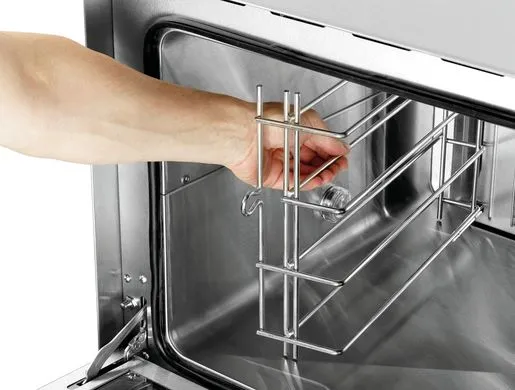

Bearing rails can be detached
Signal tone after expiry of the time
Including : 2 perforated trays
2 trays
Power : 6.4 kW
Voltage : 400 V
Frequency : 50 Hz
Material : Stainless steel
Important information : -
Width : 835 mm
Depth : 800 mm
Height : 570 mm
Weight : 65.0 kg
